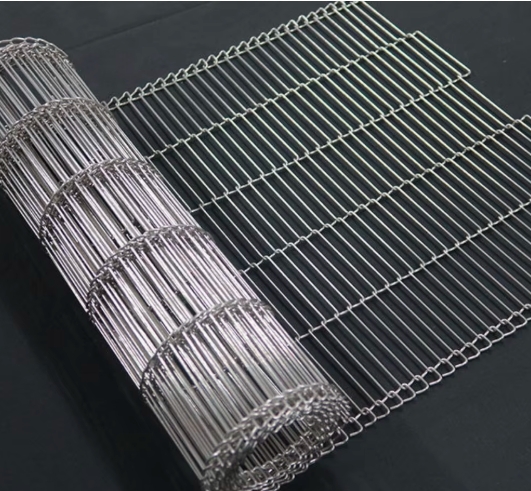

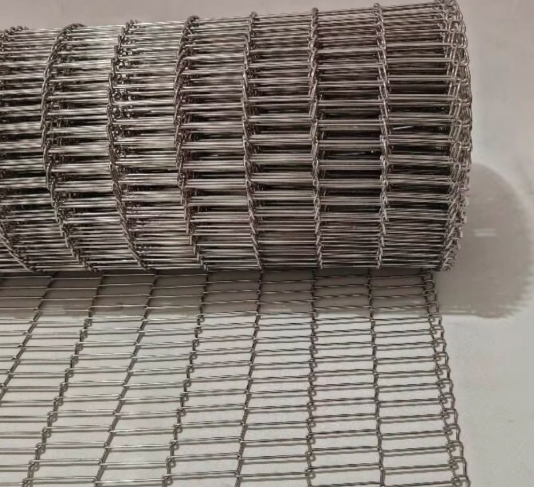

Stainless Steel Woven Wire Mesh Sliding Conveyor Belt: Heat-Resistant, Corrosion-Proof for Global Industrial Needs

🌟 Core Features: Why It’s Globally Preferred for Harsh Environment Conveying

✅ Premium Stainless Steel Material & Global Standard Compliance

• Grade-Specific Material Selection: We adopt high-quality 304/316L/310S stainless steel wires, with wire diameter ranging from 0.8mm to 4.0mm and mesh size from 1mm×1mm to 50mm×50mm. 304 stainless steel balances cost-effectiveness and corrosion resistance, ideal for European and Asia-Pacific food processing and light industrial applications; 316L offers enhanced resistance to acids, alkalis, salt spray, and chloride corrosion (perfect for North American and Southeast Asian chemical plants, marine environments, and pharmaceutical industries, complying with EU FDA & US NSF standards); 310S withstands continuous high temperatures up to 1100℃ (suitable for Middle Eastern and African metallurgical, ceramic, and glass industries) 13.
• Comprehensive Global Certifications: All conveyor belts pass strict quality inspections to meet EU CE, US UL, ISO 9001, ISO 14001, EU EN 10088, and US ASTM A240 standards. Food-grade models fully comply with FDA 21 CFR Part 177 and GMP Class 100,000 standards, while high-temperature models meet ASTM E2164 heat resistance requirements. These certifications ensure hassle-free customs clearance and market access worldwide 25.
• Hygienic & Easy to Clean: The open woven mesh structure allows for thorough cleaning—residues, dust, and liquids can be easily removed via high-pressure water, steam, or air blowing, eliminating material accumulation and bacterial growth. This makes it critical for food, pharmaceutical, and electronic industries with strict hygiene requirements46.

✅ Innovative Woven Mesh Design & Superior Sliding Conveying Performance

• Woven Mesh Structure Advantages: The belt is woven via precision looms (plain weave, twill weave, or Dutch weave) to ensure uniform mesh size and stable structure. The open area ratio (30%-80%) enables excellent heat dissipation, air circulation, and liquid drainage—ideal for drying, cooling, and cooking processes. The smooth wire surface ensures gentle sliding of materials, avoiding scratches or damage to delicate products (e.g., electronic components, fruits) 26.
• Efficient & Stable Conveying: Equipped with high-precision stainless steel sprockets and Siemens/Yaskawa drive motors (0.37-37kW), the conveying speed is adjustable (0.1-5m/s) via frequency conversion. The belt tension is adjustable to ensure smooth sliding operation without deviation. Conveying capacity ranges from 0.5-100 m³/h, with belt width customizable from 300mm to 3000mm and length from 2m to 100m, adapting to diverse production line requirements 58.
• Fully Customizable Specifications: Tailor wire diameter, mesh size, weave type, belt width/length, and accessories (side guards, guide strips, anti-slip coatings, material detectors) to your material characteristics (particle size, weight, fragility) and production processes (high-temperature cooking, corrosion-resistant conveying, precision screening). Optional reinforced edges (folded or welded) enhance belt durability 47.

✅ All-Environment Adaptability & Long Service Life

• Extreme Condition Resistance: The premium stainless steel and woven structure enable excellent adaptability to harsh environments: ① High-Temperature Environment (up to 1100℃ for 310S): Suitable for Middle Eastern metallurgical and glass factories; ② Humid/Corrosive Environment (5000+ hours salt spray test, ASTM B117): Ideal for Southeast Asian coastal factories and chemical plants; ③ Low-Temperature Environment (down to -40℃): Maintains flexibility for Northern European and Canadian cold storage applications; ④ Abrasive Environment: High-hardness stainless steel wires (HRC 45-55) resist wear from granular materials 69.
• Low Maintenance & Longevity: The corrosion-resistant and wear-resistant stainless steel material ensures a service life of 5-10 years (3x longer than rubber belts) under normal operating conditions. The simple structure and smooth surface minimize maintenance needs—only regular tension adjustment and cleaning are required. Standardized spare parts (sprockets, wires, connectors) are available globally, reducing downtime and maintenance costs 89.
• Safe & Reliable Operation: Equipped with multiple safety protection devices: overload protection, belt deviation detection, emergency stop button, and protective covers. The stainless steel material is non-toxic, flame-retardant (UL 94 V-0 standard), and anti-static (surface resistance 10⁶-10⁹Ω), avoiding dust explosion and static damage. Precision-woven wires have no sharp edges, guaranteeing operator and production safety37.

🏭 Precision Manufacturing Process: The Foundation of High Performance

1. Stainless Steel Wire Preparation: High-grade stainless steel ingots are drawn into wires of precise diameters (error ≤±0.01mm) via multi-pass drawing machines. The wires are annealed (1050-1150℃) to eliminate internal stress and improve flexibility and tensile strength. Surface cleaning removes oil stains and impurities to ensure weaving quality 47.
2. Precision Mesh Weaving: The processed stainless steel wires are woven into mesh via computer-controlled precision looms. Different weave types are adopted according to application needs: ① Plain weave for general conveying (uniform mesh, good air permeability); ② Twill weave for high-load conveying (higher tensile strength); ③ Dutch weave for precision screening (small mesh size, high filtering accuracy). Weaving precision ensures mesh size error ≤±0.05mm 26.
3. Belt Forming & Edge Reinforcement: The woven mesh is cut into required sizes via CNC cutting machines. Edge reinforcement is performed to prevent fraying—options include folded edges (welded or sewn) and reinforced steel strips (welded to mesh edges). The mesh is then connected to drive chains or sprocket holes via precision welding (argon arc welding) to form a complete conveyor belt 58.
4. Heat Treatment & Surface Finishing: The formed belt undergoes targeted heat treatment: 304/316L belts are annealed to eliminate welding stress; 310S belts undergo solution treatment to enhance high-temperature resistance. Surface finishing processes (polishing, passivation) are performed according to application requirements to improve corrosion resistance and surface smoothness 9.
5. Comprehensive Final Inspection: Finished conveyor belts undergo strict performance tests, including tensile strength, mesh size accuracy, welding firmness, corrosion resistance, and high-temperature resistance. They are also tested for 2000+ hours of continuous operation under rated load to confirm reliability. Only qualified products are allowed to leave the factory, with complete test reports provided 9.

✨ Professional Surface Treatment: Enhancing Durability & Functionality

1. Stainless Steel Mesh Surface Treatment

• Passivation Treatment: Using nitric acid or citric acid solution to form a dense oxide film on the mesh surface, enhancing corrosion resistance by 60% and extending service life in humid and corrosive environments 59.
• Polishing Treatment: For food, pharmaceutical, and electronic industries, the mesh surface is polished to Ra ≤0.2μm, ensuring a smooth, hygienic surface that avoids material adhesion and scratches. Polishing also improves the belt’s aesthetic appearance 46.
• Pickling Treatment: Removing oxide scale and welding residues on the surface after heat treatment and welding, improving surface finish and corrosion resistance 8.

2. Optional Functional Coating Treatment

• PTFE Coating: Applied to the mesh surface for food processing and chemical industries, enhancing anti-adhesion (prevents sticky materials from adhering) and corrosion resistance (resists acids, alkalis, and organic solvents). The coating can withstand temperatures up to 260℃ 6.
• Ceramic Coating: For high-temperature and abrasive environments (e.g., metallurgy, mining), the coating enhances surface hardness (HRC 60-70) and wear resistance, extending service life by 2-3 times 7.
• Anti-Static Coating: For electronic component and flammable material conveying, the coating achieves surface resistance 10⁶-10⁹Ω, complying with ANSI/ESD S20.20 standards and avoiding static damage 3.

3. Accessory Surface Treatment

🌍 Global Application Scenarios: Powering Diverse Industries Worldwide

🍎 Food & Beverage Industry

• Food Processing & Cooking: 304/316L polished mesh models for European and Asian food factories, used in baking (bread, cookies), frying (chips, French fries), and drying (fruits, vegetables) processes. The open mesh structure ensures uniform heating and easy oil/dust removal, complying with FDA and HACCP standards 79.
• Dairy & Pharmaceutical Processing: 316L passivated mesh models for North American dairy and pharmaceutical plants, conveying milk powder, pharmaceutical powders, and capsules. The hygienic surface and easy cleaning meet GMP requirements 46.

🏭 Metallurgy & Heat Treatment Industry

• High-Temperature Heat Treatment: 310S mesh models for Middle Eastern and European metallurgical plants, conveying metal parts, steel strips, and castings during annealing, quenching, and sintering processes (withstanding temperatures up to 1100℃) 26.
• Metal Powder Screening: Dutch weave mesh models for Australian and African mining sites, conveying and screening metal powders (iron ore powder, copper ore powder) with high precision 35.

🧪 Chemical & Petrochemical Industry

• Chemical Material Conveying: 316L mesh models with PTFE coating for Southeast Asian and North American chemical plants, conveying chemical powders, granules, and corrosive materials (resisting acids, alkalis, and organic solvents) 69.
• Wastewater Treatment: Plain weave mesh models for global wastewater treatment plants, used in filtering and conveying sludge and solid particles 47.

📱 Electronic & Electrical Industry

• Electronic Component Processing: 304 polished mesh models for Asian electronic factories, conveying chips, circuit boards, and electronic accessories during cleaning, drying, and assembly processes. The smooth surface avoids scratches, and the anti-static coating prevents static damage 89.
• Battery Production: 316L mesh models for global battery manufacturers, conveying battery electrodes and components during high-temperature drying processes 26.

🏭 Glass & Ceramic Industry

• Glass & Ceramic Firing: 310S mesh models for European and Asian glass/ceramic factories, conveying glass sheets, ceramic tiles, and greenware during high-temperature firing processes (withstanding temperatures up to 1000℃) 89.
• Raw Material Screening: Twill weave mesh models for Middle Eastern ceramic plants, conveying and screening ceramic raw materials (clay, feldspar) to ensure uniform particle size 46.

🤝 Your Trusted Global Partner for Harsh Environment Conveying

• Global Standard Compliance: Full certification (CE, UL, ISO, FDA, GMP) and SGS/Intertek test reports (corrosion resistance, heat resistance, hygiene, tensile strength) for hassle-free customs clearance in 120+ countries 39.
• Full Customization & OEM/ODM: Tailor wire diameter, mesh size, weave type, belt size, and surface treatment to regional industry needs, with branded packaging, 8+ language operation manuals, and custom logos to help you build local brand loyalty.
• Flexible Cooperation Terms: Accept small trial orders (1-5 meters for standard models); bulk orders enjoy tiered pricing discounts. Short production lead time: 15-25 days for standard orders, 25-40 days for custom high-temperature/corrosion-resistant models.
• Global Logistics & 24/7 Support: Strategic warehouses in China, Europe, and the USA enable fast delivery (3-7 days for key markets). Provide 24/7 multilingual after-sales service, including on-site installation guidance, operation training, and global spare parts supply.
