Product Introduction: The Global Choice for Flexible Protection & Ecological Adaptation

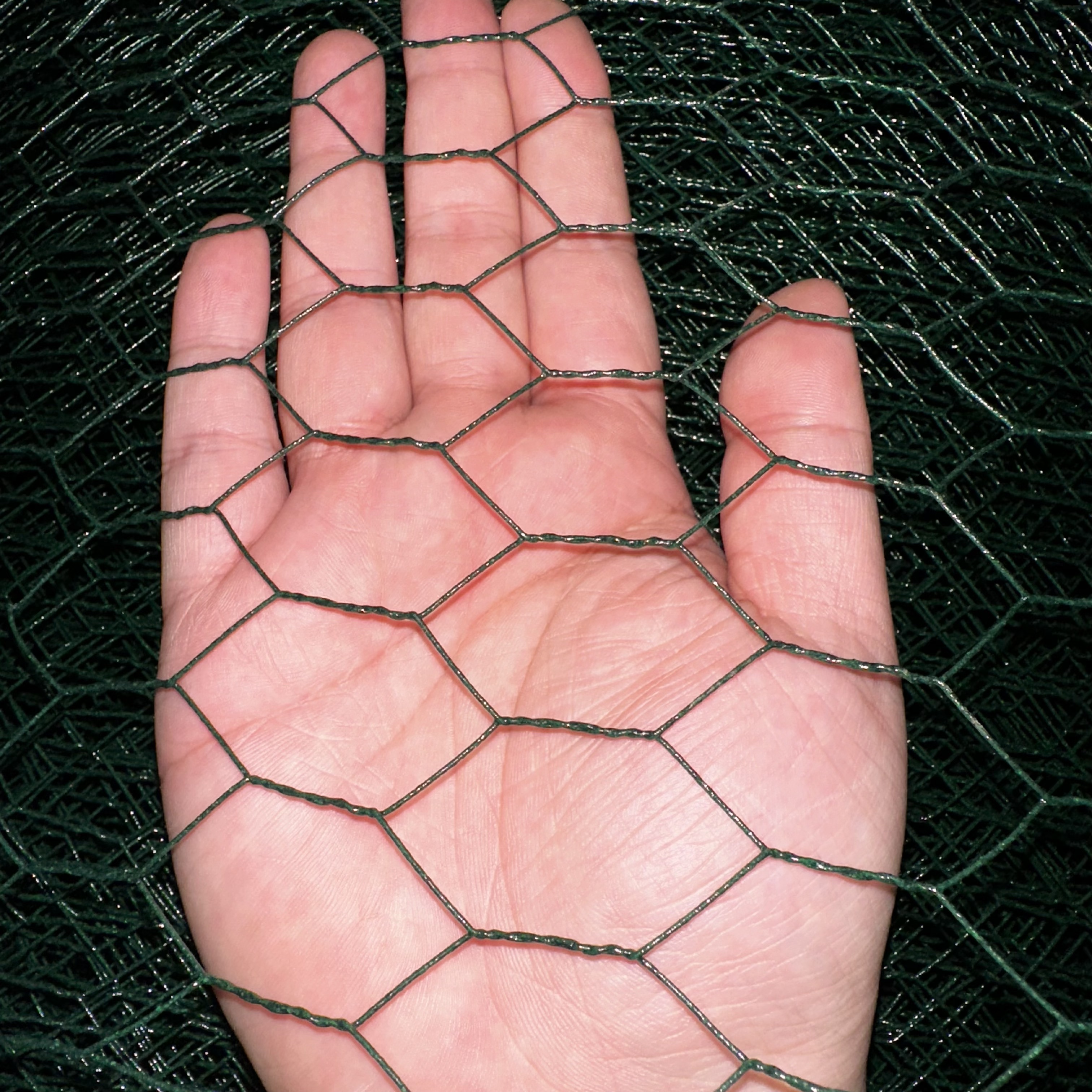

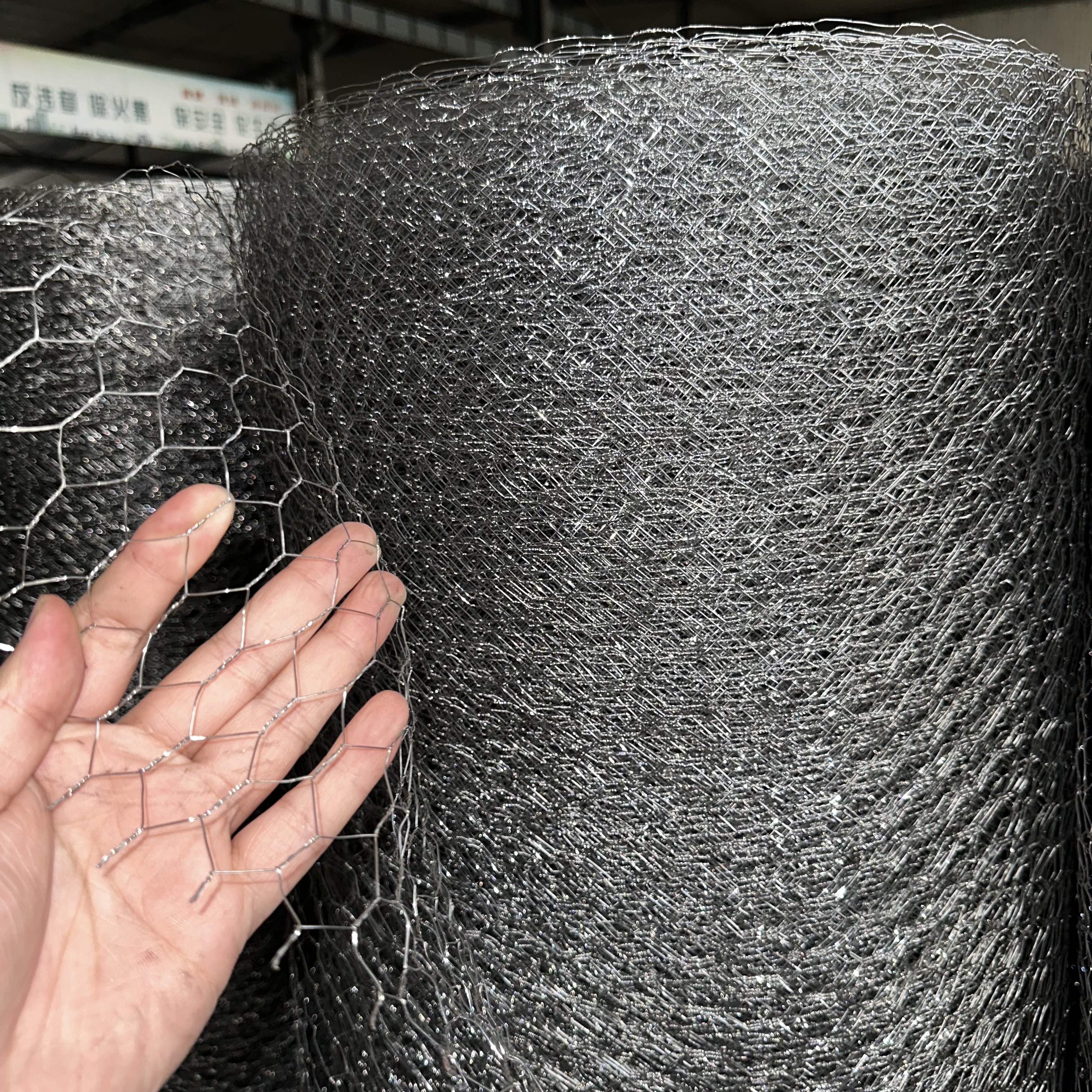

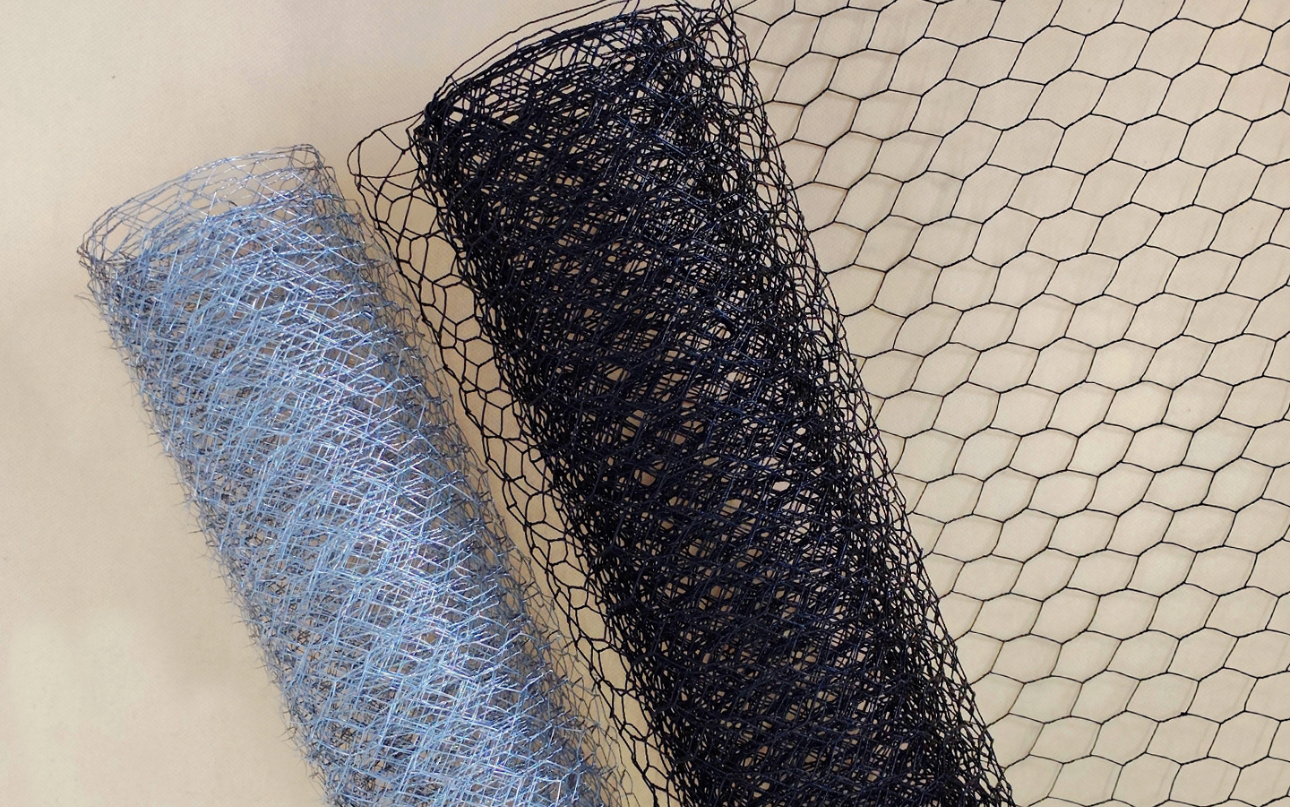

Hexagonal Wire Mesh (also called hex mesh, chicken wire mesh, or gabion mesh) is a high-performance flexible metal mesh engineered through interlocking hexagonal openings—crafted from premium low-carbon steel wire, stainless steel (304/316), or PVC-coated steel wire. Its unique hexagonal structure delivers exceptional tensile strength, impact resistance, and shape adaptability, making it a versatile solution for protection, reinforcement, and ecological engineering. Compliant with international standards (ASTM A475, ISO 9001, EN 10223-4), it has become an indispensable choice across construction, agriculture, environmental protection, and security sectors in North America, Europe, Asia-Pacific, Africa, and the Middle East.
Unlike rigid welded mesh or flat woven mesh, hexagonal wire mesh’s interlocking design allows it to conform to uneven surfaces (slopes, curved structures) and absorb impact without deformation. With customizable wire diameters, mesh sizes, and surface treatments, it balances durability, functionality, and environmental friendliness—making it the trusted solution for global buyers seeking flexible, long-lasting mesh applications.
Core Features (Global Competitive Advantages)
1. Superior Flexibility & Impact Resistance
• Hexagonal Interlocking Structure: Wires are twisted and interlocked to form hexagonal openings (mesh sizes 6×6mm to 150×150mm), enabling the mesh to bend freely, fit irregular terrains, and withstand impact (up to 200kg/m² load) from falling rocks, livestock, or natural elements.
• High-Tensile Construction: Wire diameters range from 0.5mm to 4.0mm, with tensile strength ≥500MPa for low-carbon steel and ≥600MPa for stainless steel variants. The interlocking design distributes stress evenly, preventing local breakage.
• Easy Installation & Transportation: Lightweight (0.8–5kg/㎡) and available in rolls (50m/100m length) or panels (1×2m to 3×6m), it can be cut with ordinary tools, installed without heavy machinery, and transported efficiently—ideal for remote construction sites.
2. All-Climate Durability & Corrosion Resistance
• Tailored Surface Treatments for Global Climates:
◦ Hot-dip Galvanizing (≥120g/㎡ zinc layer): Salt spray resistance ≥800 hours; perfect for humid Southeast Asia, coastal North America, and tropical Africa—protects against rain, salt mist, and humidity.
◦ PVC Coating (0.8–1.2mm thickness): RAL color options (green, black, gray) with UV resistance ≥5000 hours; no fading or peeling, ideal for residential landscaping and ecological engineering in Europe and North America.
◦ 304/316 Stainless Steel: Ultimate corrosion resistance; immune to saltwater and chemical erosion—essential for marine engineering and coastal protection in the Mediterranean and Caribbean.
◦ Electro-Galvanizing (≥30g/㎡ zinc layer): Cost-effective corrosion protection; suitable for dry inland areas (Africa, Middle East) and indoor applications.
• Extreme Temperature Adaptability: Operates stably from -40℃ to 80℃; resists frost cracking in Northern Europe and heat deformation in Middle Eastern deserts. Service life ranges from 8 to 30 years depending on surface treatment.
3. Eco-Friendly & Multi-Application Versatility
• Ecological Compatibility: The hexagonal openings allow soil penetration, plant growth, and water drainage—ideal for slope stabilization, riverbank protection, and ecological restoration projects (compliant with EU Natura 2000 standards).
• Multi-Scenario Adaptability: Suitable for gabion cages (rock retaining walls), livestock fencing, garden protection, construction site safety barriers, bird/rodent control, and mine shaft support—one product fits diverse industry needs.
• Cost-Efficient & Low Maintenance: Simplified production process and lightweight design reduce transportation and installation costs; corrosion-resistant treatments minimize maintenance needs, lowering long-term use costs.
4. Compliance & Quality Assurance
• Global Certifications: Meets ASTM A475, ISO 9001, CE, and SGS standards—test reports for tensile strength, corrosion resistance, and mesh uniformity provided for customs clearance.
• 100% Recyclable: Made from recyclable metals, aligning with global green building trends (LEED, BREEAM) and appealing to sustainability-focused buyers.
Global Applications (Scene-Specific Solutions)
In North America (USA/Canada), hexagonal wire mesh is widely used for gabion retaining walls (highway slope stabilization), livestock fencing (cattle, poultry), and coastal erosion control. PVC-coated mesh is favored for residential garden protection and wildlife exclusion, while stainless steel mesh is used for marine dock reinforcement.
For Europe (EU/UK), eco-friendly hexagonal mesh dominates ecological restoration projects (riverbank protection, wetland conservation) and gabion stone cages for infrastructure construction. PVC-coated green mesh blends with natural landscapes, making it popular for garden fencing and public park security barriers.
In Southeast Asia (Indonesia/Vietnam), hot-dip galvanized hexagonal mesh protects palm oil plantations from wild animals and tropical storms. It’s widely used for low-cost housing reinforcement, riverbank erosion control, and fish pond fencing—supporting the region’s agricultural and infrastructure development.
For Africa (Nigeria/South Africa), electro-galvanized hexagonal mesh is a cost-effective solution for livestock corrals, rural water well protection, and small-scale mining site safety barriers. Its lightweight and easy installation suit remote areas with limited labor and machinery resources.
In the Middle East (UAE/Saudi Arabia), 304 stainless steel and PVC-coated hexagonal mesh are critical for desert construction—used in gabion walls (sand dune stabilization), oil refinery security perimeters, and desert farm fencing. The corrosion-resistant treatments prevent rust from desert humidity, while the flexible structure withstands sandstorms.
✅ Why Choose Our Hexagonal Wire Mesh for Global Export?
• Global Compliance & Certification: Meet ASTM A475, ISO 9001, CE, and SGS standards—full technical reports provided to ensure smooth customs clearance worldwide.
• OEM/ODM Expertise: Customize wire diameter (0.5–4.0mm), mesh size (6×6–150×150mm), surface treatment (galvanized/PVC-coated/stainless steel), and packaging. Support branded labeling for distributors to build local market recognition.
• Flexible MOQ & Competitive Pricing: Accept small trial orders (50 sq.m/10 rolls) for new partners; bulk pricing discounts for orders over 10,000 sq.m to maximize your profit margin.
• Comprehensive Global Support: Multilingual technical documents (English, Spanish, Arabic, French) and installation guides; 24/7 after-sales service to resolve issues across time zones.
• Efficient Logistics: Waterproof packaging (plastic wrap + steel pallets) reduces sea freight damage; strategic warehouses in China, Europe, and the USA enable fast delivery (3–7 days for key markets).
Whether you’re supplying construction contractors, agricultural enterprises, environmental engineering firms, or security companies, our hexagonal wire mesh delivers unbeatable flexibility, durability, and ecological adaptability. Join 600+ global partners and leverage the world’s most trusted hexagonal mesh solution to expand your export business—reliable, adaptable, and built for every protection and reinforcement challenge!
